HomeAutomation & Control inductive sensor XS1 M8, L50mm, stainless, Sn1.5mm, 12..24VDC, cable 2 m
Previous product
Placeholder
PUSH BUTTON 600VAC 10A 30MM T-K
Back to products
Next product
Placeholder
TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NO aux. - 12 V AC coil

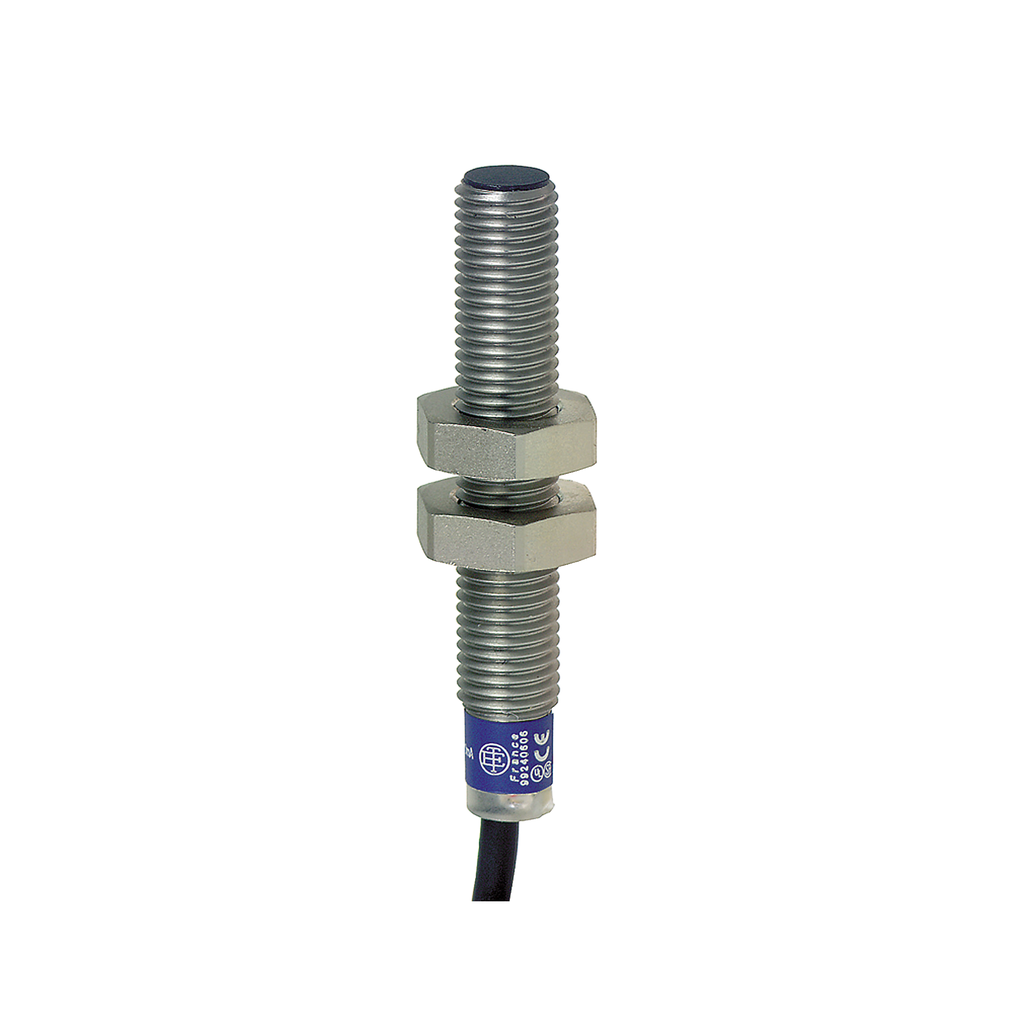

inductive sensor XS1 M8, L50mm, stainless, Sn1.5mm, 12..24VDC, cable 2 m

inductive sensor XS1 M8, L50mm, stainless, Sn1.5mm, 12..24VDC, cable 2 m

SKU: 1312737 Category: Automation & Control
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 8mm, threaded M8 x 1. It features a stainless steel case and a 2m long cable. It has a sensing distance of 1.5mm. Four-wire, , DC supply, 12V to 24V, NO + NC function, PNP solid-state output .

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “inductive sensor XS1 M8, L50mm, stainless, Sn1.5mm, 12..24VDC, cable 2 m” Cancel reply

Your email address will not be published. Required fields are marked *
