HomePower Monitoring iEM3565 energy meter – BACnet – 1 DI – 1 DO – multi-tariff – Rogowski coil
Previous product
primary_image
Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm barrel, 15 24 V DC
Back to products
Next product
primary_image
Circuit breaker, PowerPacT B, 25A, 2 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, AC

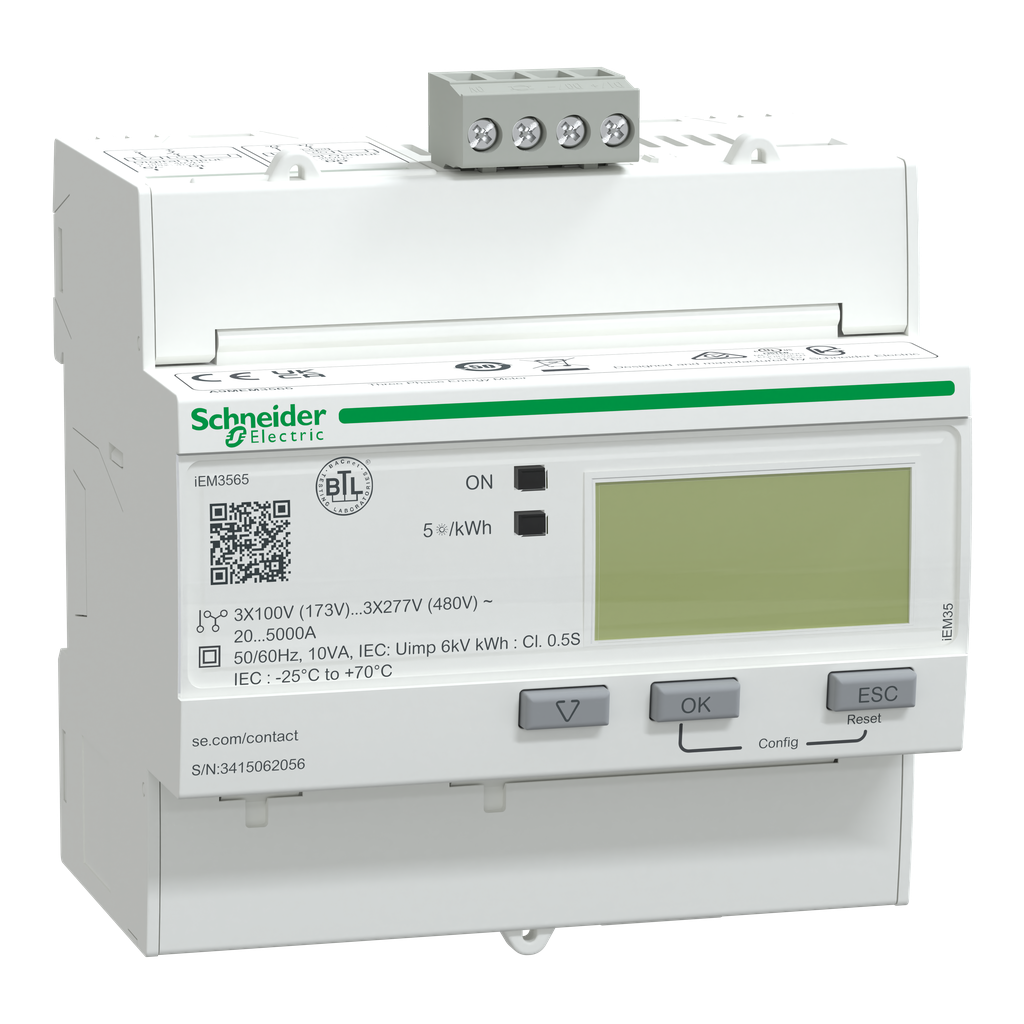

iEM3565 energy meter – BACnet – 1 DI – 1 DO – multi-tariff – Rogowski coil

iEM3565 energy meter – BACnet – 1 DI – 1 DO – multi-tariff – Rogowski coil

SKU: 4281988 Category: Power Monitoring
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a Rogowski coil to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is BACnet with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm).
