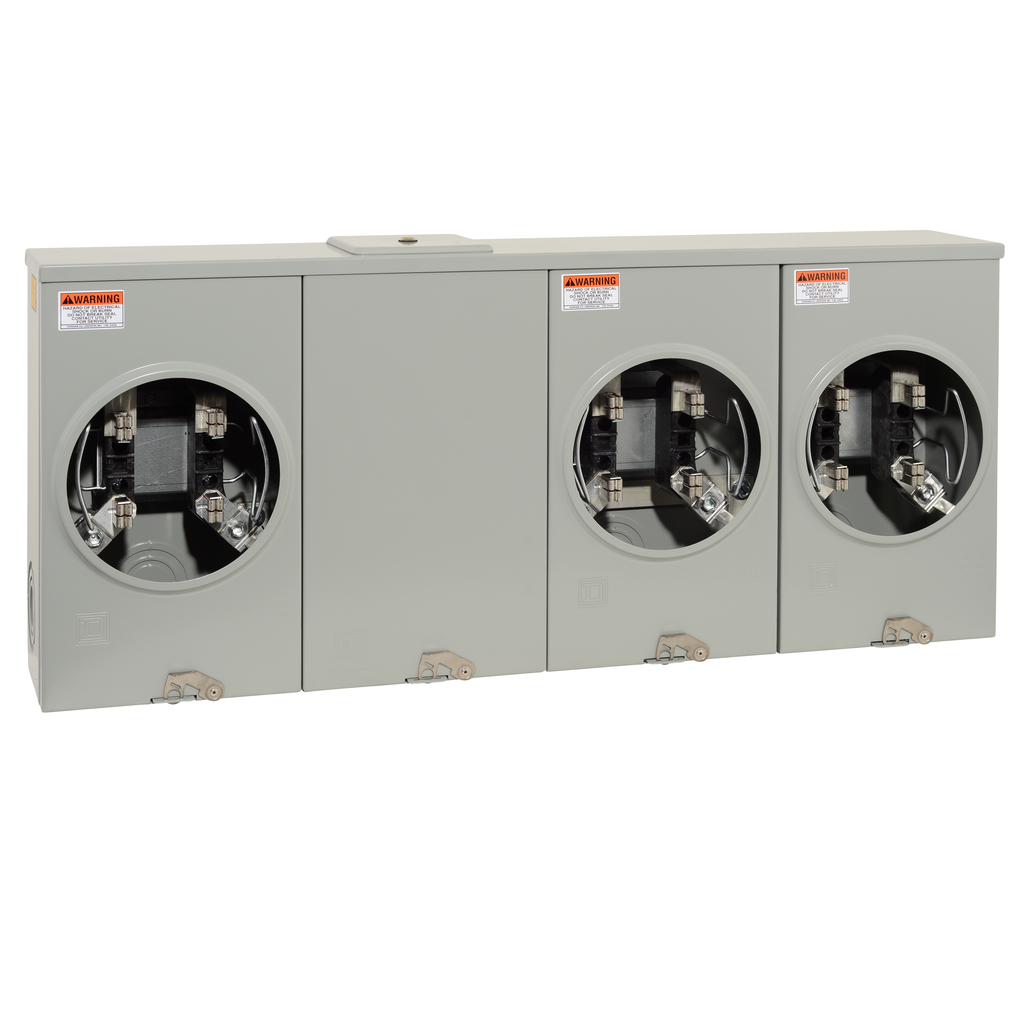

horizontal ganged meter sockets are for single phase systems up to 600 VAC. These main lug units can be from 2 through 6 meter positions. Units can be with or with a horn or lever bypass and be fed from the end or the center. This horizontal ganged meter socket has three meter positions with a horn bypass. Each socket position has a 4 jaw socket without jaw release. The main is rated at 200 A. This unit can be feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure. The main lugs will accept 1/0 AWG to 500 kcmil copper or aluminum wire. The branch lugs will accept 8 AWG to 250 kcmil copper or aluminum wire. This horizontal ganged meter socket device is UL Listed.
Horizontal meter sockets, 3 ringless sockets, horn bypass, 4 jaws, OH, UG, 200 A
Horizontal meter sockets, 3 ringless sockets, horn bypass, 4 jaws, OH, UG, 200 A
SKU: 9038749
