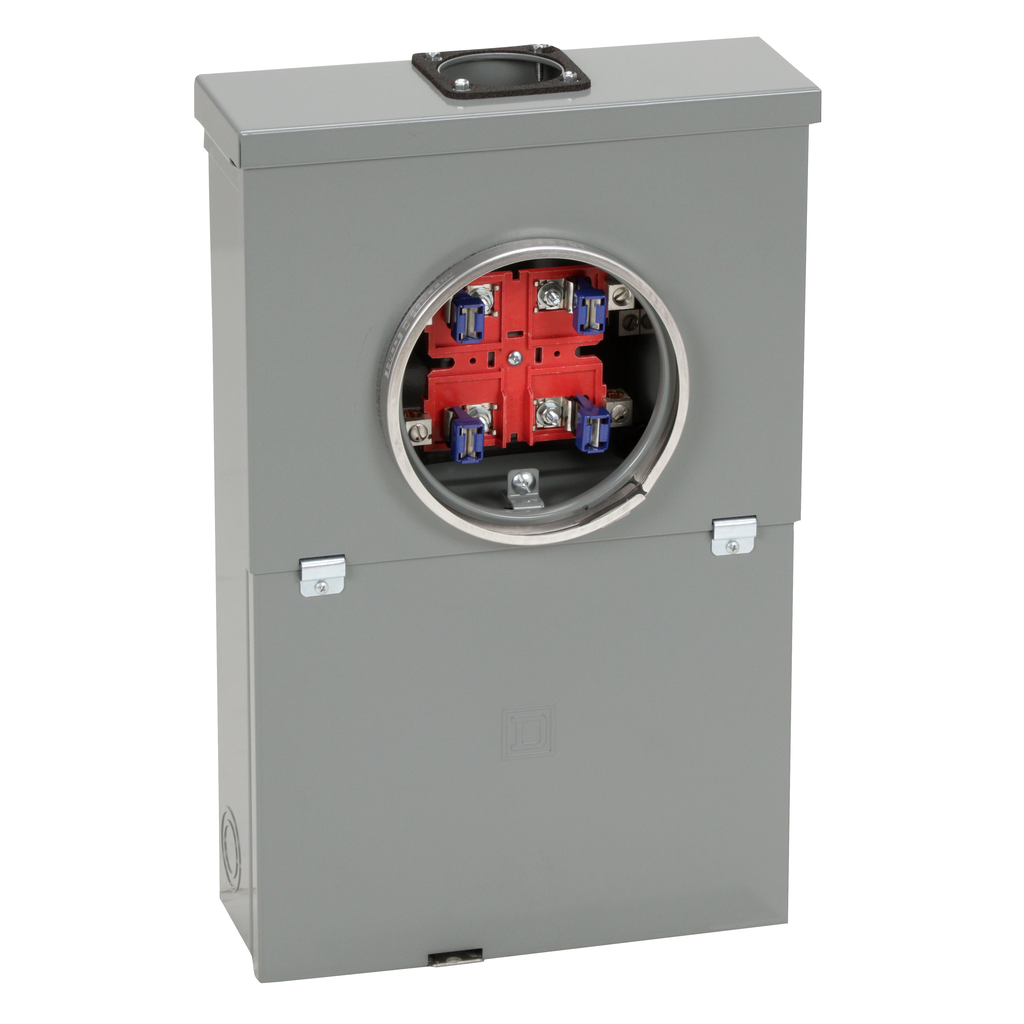

All in one, Homeline, combination service entrance, ringed socket, 200A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead service. The service disconnect has a HOM2100 with a maximum rating of 100 A. Device has a 10 kA short circuit current rating. Load center has 10 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 20.79 inches tall, 13.46 inches wide and 4.56 inches deep. The line side lugs will accept 6 AWG to 1 AWG copper or aluminum wire. The service ground lug will accept 8 AWG to 4 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed.
