Cuny & Guerber
primary_image
Click to enlarge
HomeAutomation & Control network switch, Modicon Networking, basic managed, 8 ports for copper
Previous product
primary_image
Contactor, Definite Purpose, 30A, 2 pole, 440/480VAC 50/60Hz coil, open
Back to products
Next product
primary_image
Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 6.0A, 80%, ABC

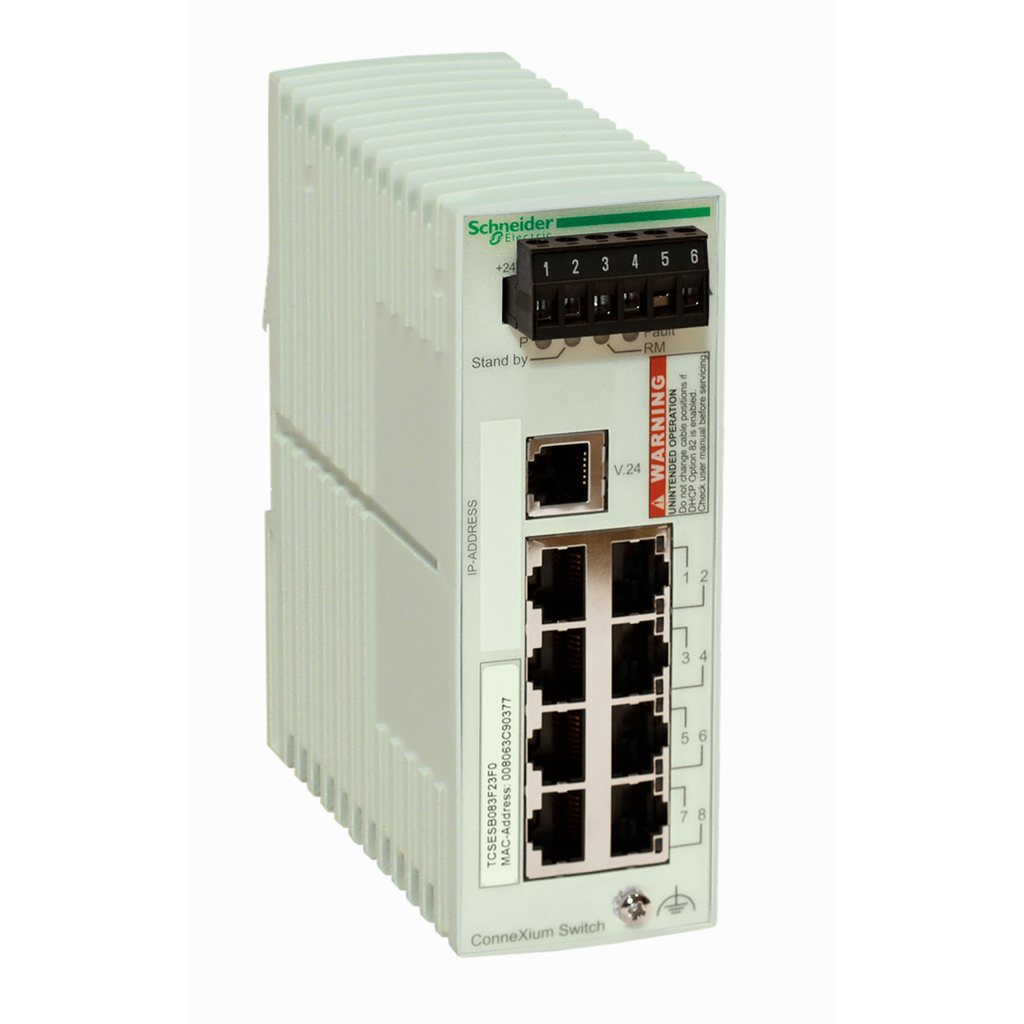

network switch, Modicon Networking, basic managed, 8 ports for copper

network switch, Modicon Networking, basic managed, 8 ports for copper

SKU: 511172 Category: Automation & Control
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP basic managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 214, CSA C22.2 No 213 Class I Division 2, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “network switch, Modicon Networking, basic managed, 8 ports for copper” Cancel reply

Your email address will not be published. Required fields are marked *
