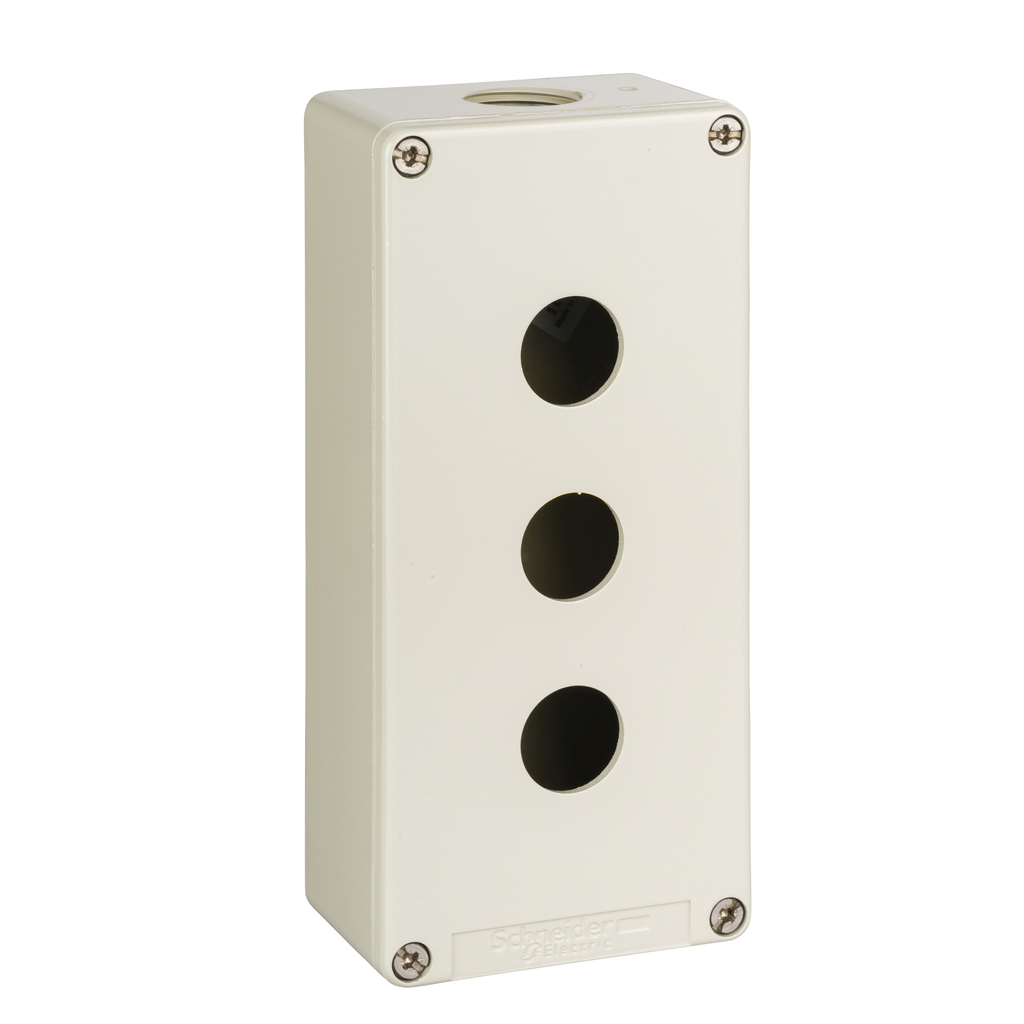

This is part of the range Harmony XAP, XB2 SL metal enclosures for Harmony XB4. This Harmony XAPG is a die-cast empty control station. It has 3 cut-outs, 3 vertical openings, diameter 22mm for 3 functions. Designed for industry, it offers operating simplicity, flexibility and robustness. Its protection index is IP65. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides a zinc alloy grey (RAL 7032) enclosure. Its dimensions are 175mm height, 80mm wide, 51.5mm deep. It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport. It is compatible with the Harmony XB4 range of control and signaling units.
Die cast empty control station, Harmony XAP, zinc alloy, grey, 3 cut outs, 22mm, 175x80x51.5mm
Die cast empty control station, Harmony XAP, zinc alloy, grey, 3 cut outs, 22mm, 175x80x51.5mm
