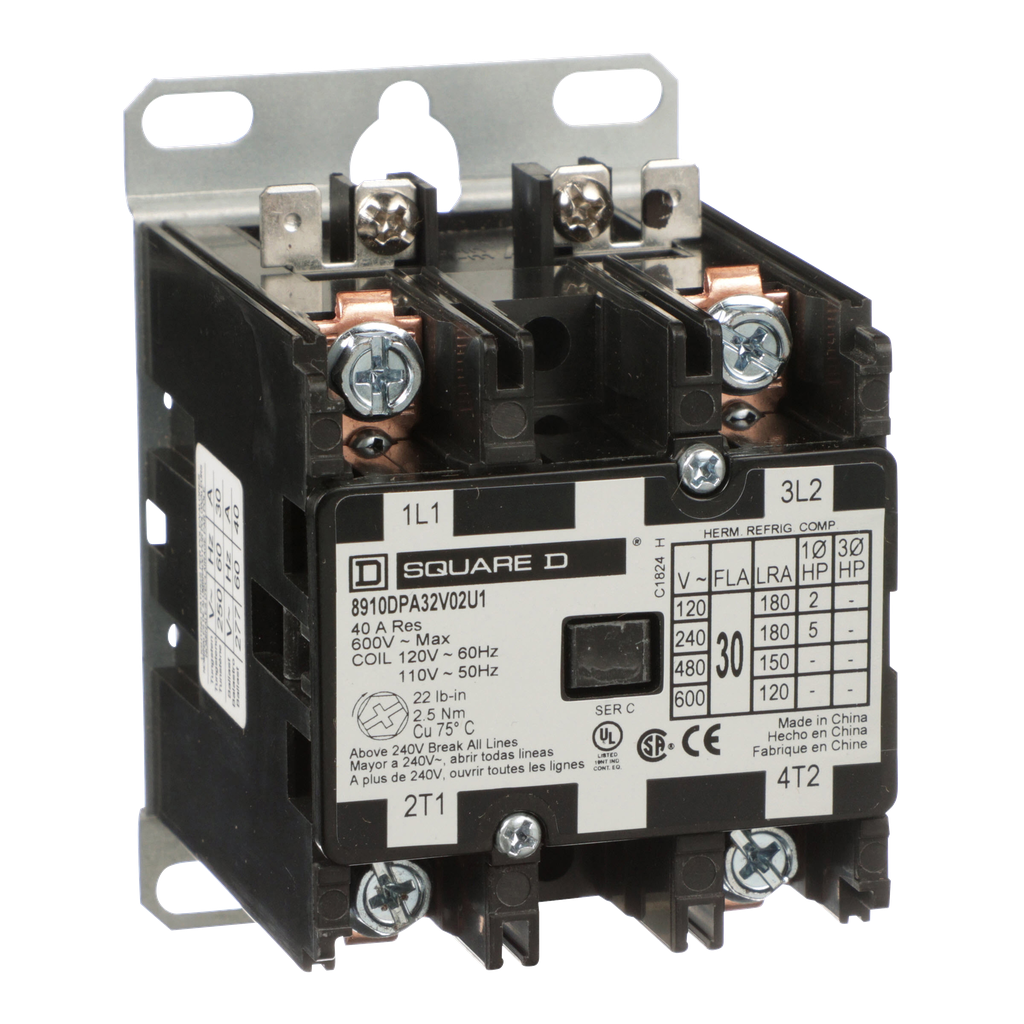

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL Listed and CSA Certified.
Contactor, Definite Purpose, 30A, 2 pole, 5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open, UL Listed
Contactor, Definite Purpose, 30A, 2 pole, 5HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open, UL Listed
