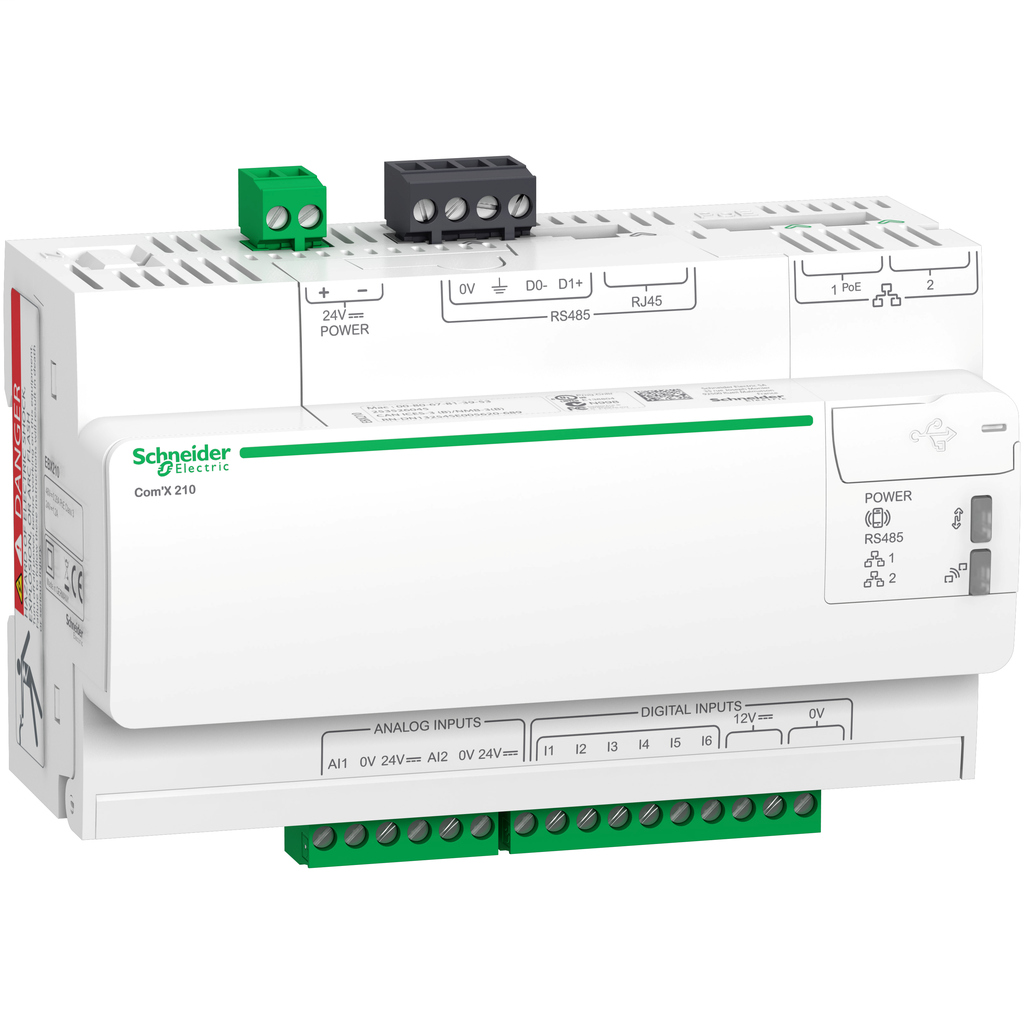

This device is a gateway with data logger that can collect information from up to 64 field devices. ComX devices collect energy data throughout the building, from electrical distribution devices (meters, switchgear) and smart panels. Part of EcoStruxure, the web service provide user interface for reporting and information. They deliver the data on local area network (LAN) to enable Smart displays: dashboards, historical graph charts, etc. An Entry Level Energy Management System with comprehensive views of energy consumption, enabling energy efficiency actions. Can be connected to network through Ethernet, or with optional WiFi or GPRS. It received IEC60950 and UL508 certification. Wide control power range from a 24VDC source or even a Power of Ethernet 15.4 Watt DC. The gateway can be DIN rail mounted in a modular enclosure. Product dimensions are as follows: width 144 millimetres, depth 65.8 millimetres, height 91 millimetres and product weight 450 g.
