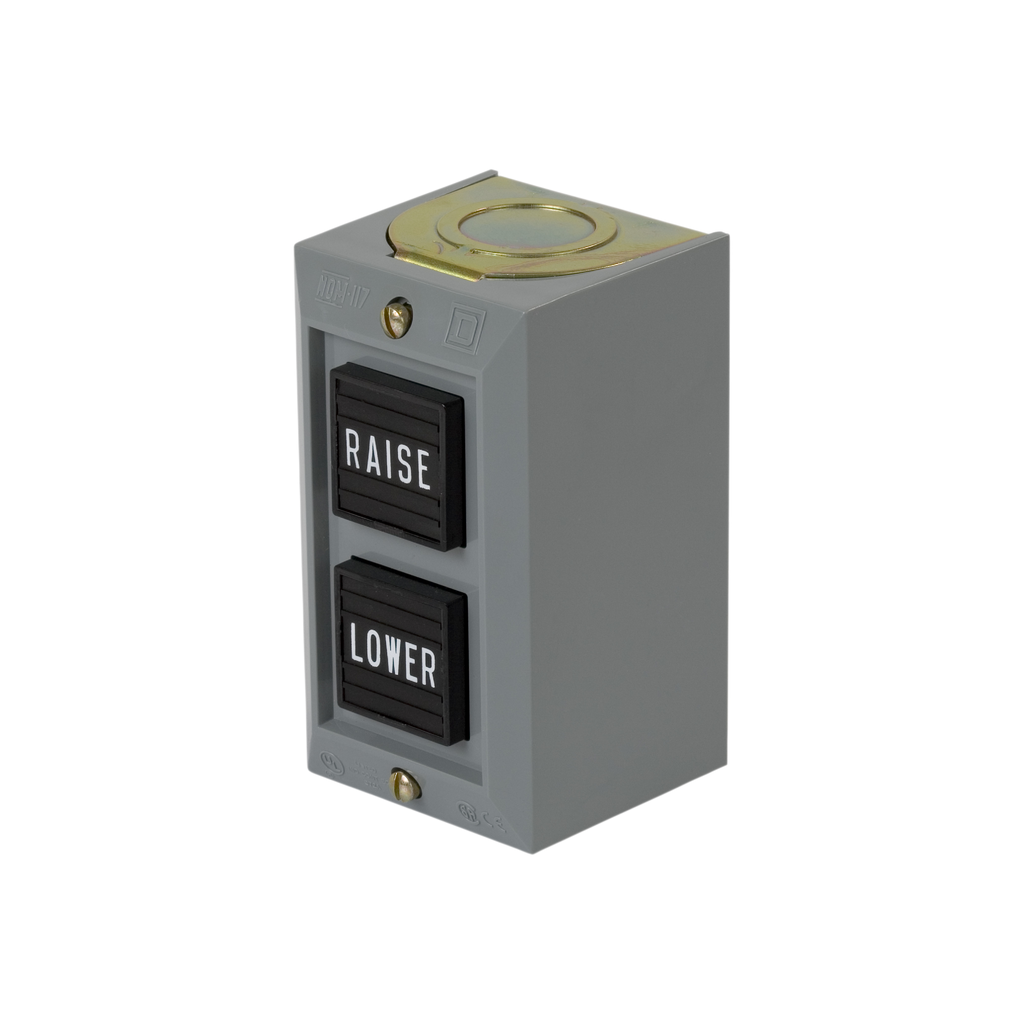

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a RAISE push button with a normally open contact and a LOWER push button with a normally open contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Complete control station, Harmony 9001B, 2 push buttons RAISE/LOWER, 5A, 600V AC, 2NO, NEMA 1
Complete control station, Harmony 9001B, 2 push buttons RAISE/LOWER, 5A, 600V AC, 2NO, NEMA 1
SKU: 172558261
Category: Automation & Control
Reviews (0)
Be the first to review “Complete control station, Harmony 9001B, 2 push buttons RAISE/LOWER, 5A, 600V AC, 2NO, NEMA 1” Cancel reply
