This product is part of the Nema Pressure Switches range, an offer of float switches. This float switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. The closed tank float switch supports screw-in bush mounting method and 45° float rod angle for operating in right position. It is furnished with screw clamp terminals for electrical connection and 3 knockouts for 1/2inch conduit. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. The enclosure is made of polypropylene or equivalent material. It weighs 4.48lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. It is a NEMA 1 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. Float switch is attached to the tank by means of a 2-1/2inch bushing. An external pointer indicates the float position within the tank when the unit is mounted. Switch comes complete with stainless steel float and rod.

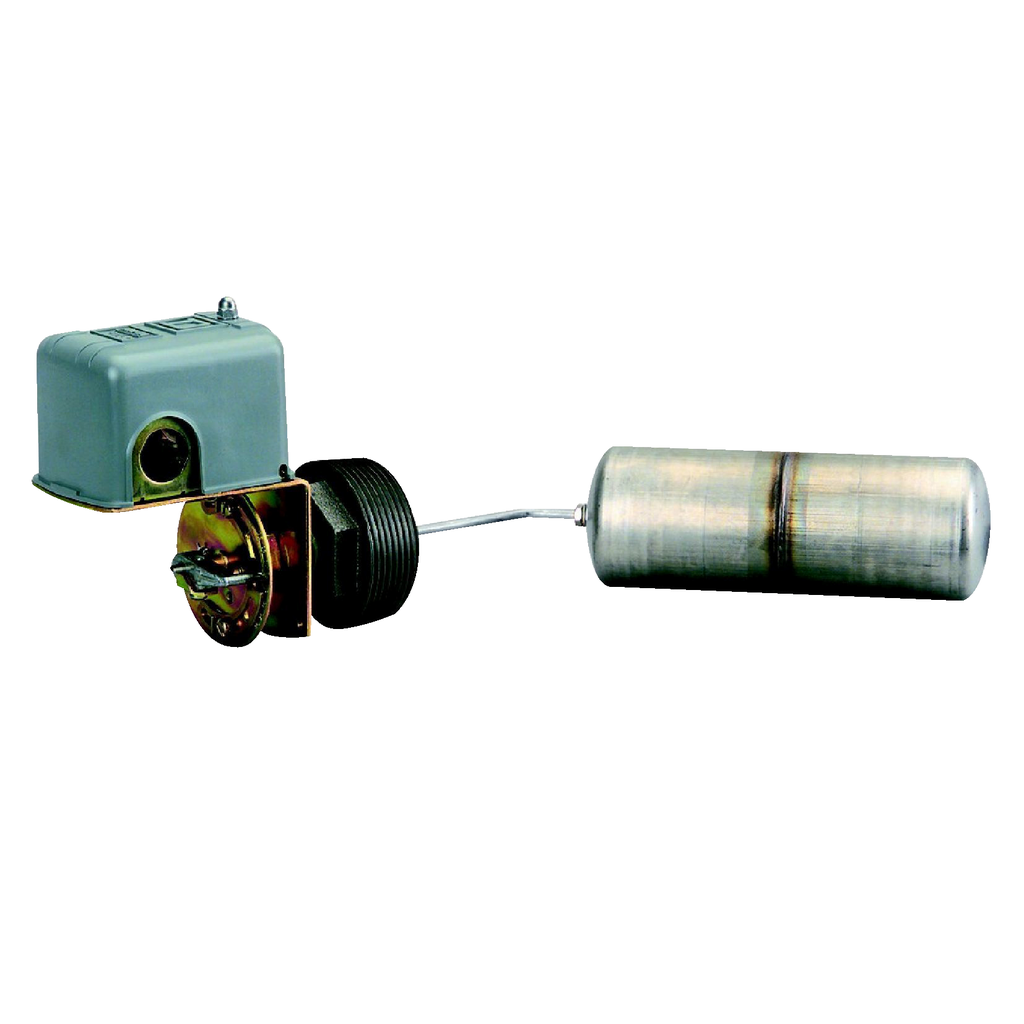

Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts
Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts
SKU: 1349478
Category: Automation & Control
Reviews (0)
Be the first to review “Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts” Cancel reply
