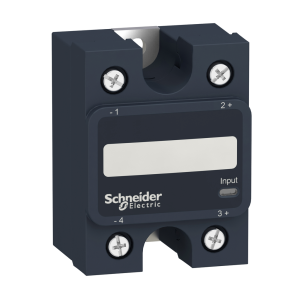

single phase relay, Harmony Solid State Relays, 75A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 48 to 660V AC
Back to products
Next product
Placeholder
Rectangular pilot light Ø16 IP65 red - integral LED 12VDCpolarised connector

Serial line cartridge, Modicon M221, conveying 1 I/O extension

Serial line cartridge, Modicon M221, conveying 1 I/O extension

SKU: 487732 Category: PLC Accessories
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

cartridge M221 – conveying 1 serial line – I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides a serial link port for conveying application. The non isolated serial link type is Modbus master – slave. This product requires minimal installation and offers tremendous versatility. The serial line can be configured with Modbus RTU, Modbus ASCII or ASCII protocols. There is no insulation between lines and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
