Cuny & Guerber
primary_image
Click to enlarge
HomeDisconnect Switches Operating mechanism, flange mounted, variable depth, 100A, 600V, no fuse, cable operated switch mechanism
Previous product
primary_image
Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever plung. Ver, 1NC+1 NO, snap, 1/2NPT
Back to products
Next product
primary_image
Monolithic pilot light, Harmony XB6E, round Ø 16, IP65, orange, integral LED 24VDCpolarised, connector

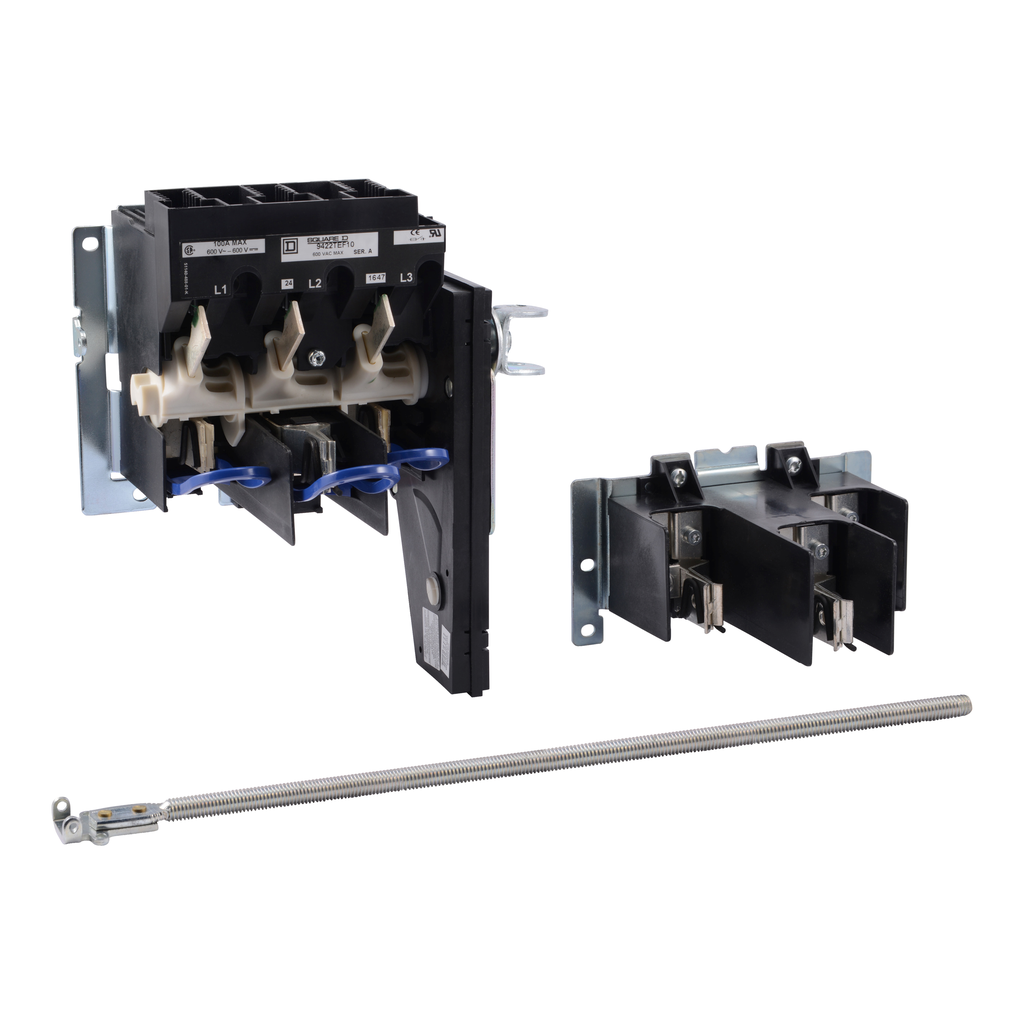

Operating mechanism, flange mounted, variable depth, 100A, 600V, no fuse, cable operated switch mechanism

Operating mechanism, flange mounted, variable depth, 100A, 600V, no fuse, cable operated switch mechanism

SKU: 15031331 Category: Disconnect Switches
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 100 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for #10 to #0 AWG with copper wire and #6 to #0 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Operating mechanism, flange mounted, variable depth, 100A, 600V, no fuse, cable operated switch mechanism” Cancel reply

Your email address will not be published. Required fields are marked *
