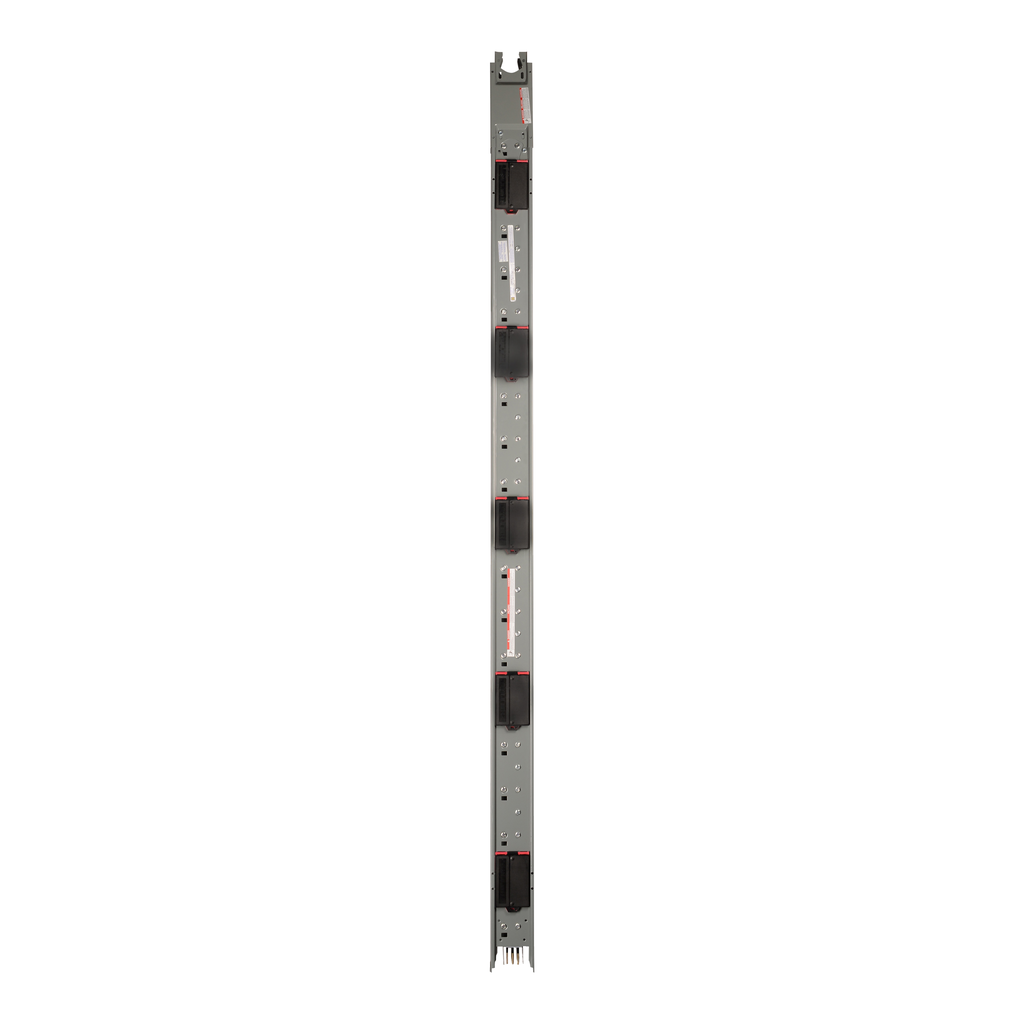

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line’s plug-in busway has options from 225A to 5000A with aluminum or copper conductors; its feeder busway from 800A to 5000A. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This 10 foot plug-in section of busway has a copper bus rated at 1200A at 600V. This busway system is configured for a 3 phase, 3 wire system and has a 50 percent capacity integral ground bus.
Straight length, I-Line Busway, 1200A, 600VAC, 3 phase, 3 wire, integral ground bus, Cu, plug in, 10ft
Straight length, I-Line Busway, 1200A, 600VAC, 3 phase, 3 wire, integral ground bus, Cu, plug in, 10ft
