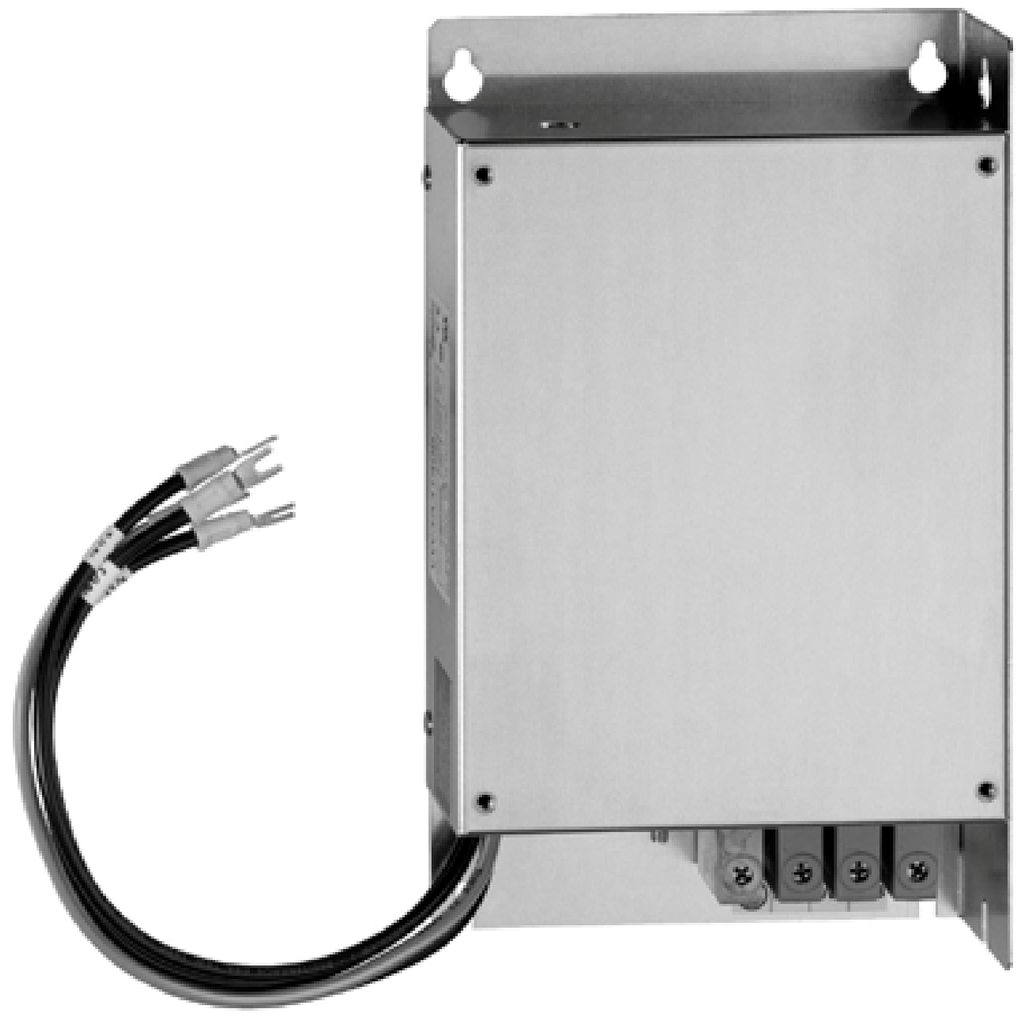

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 90A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2. Its protection index is IP20. It weighs 15kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
additionnal EMC input filter – 3-phase supply – 90 A
additionnal EMC input filter – 3-phase supply – 90 A
