HomeStarters & Contactors Contactor, Type L, multipole lighting, electrically held, 30A, 10 pole, 600V, 277VAC 60Hz coil, NEMA 1
Previous product
primary_image
Wall mounted steel enclosure, Spacial S3D, plain door, without mounting plate, 1200x600x300mm, IP66, IK10
Back to products
Next product
primary_image
LED bulb, Harmony XVB, BA15d, red, flashing signaling type, 120V AC

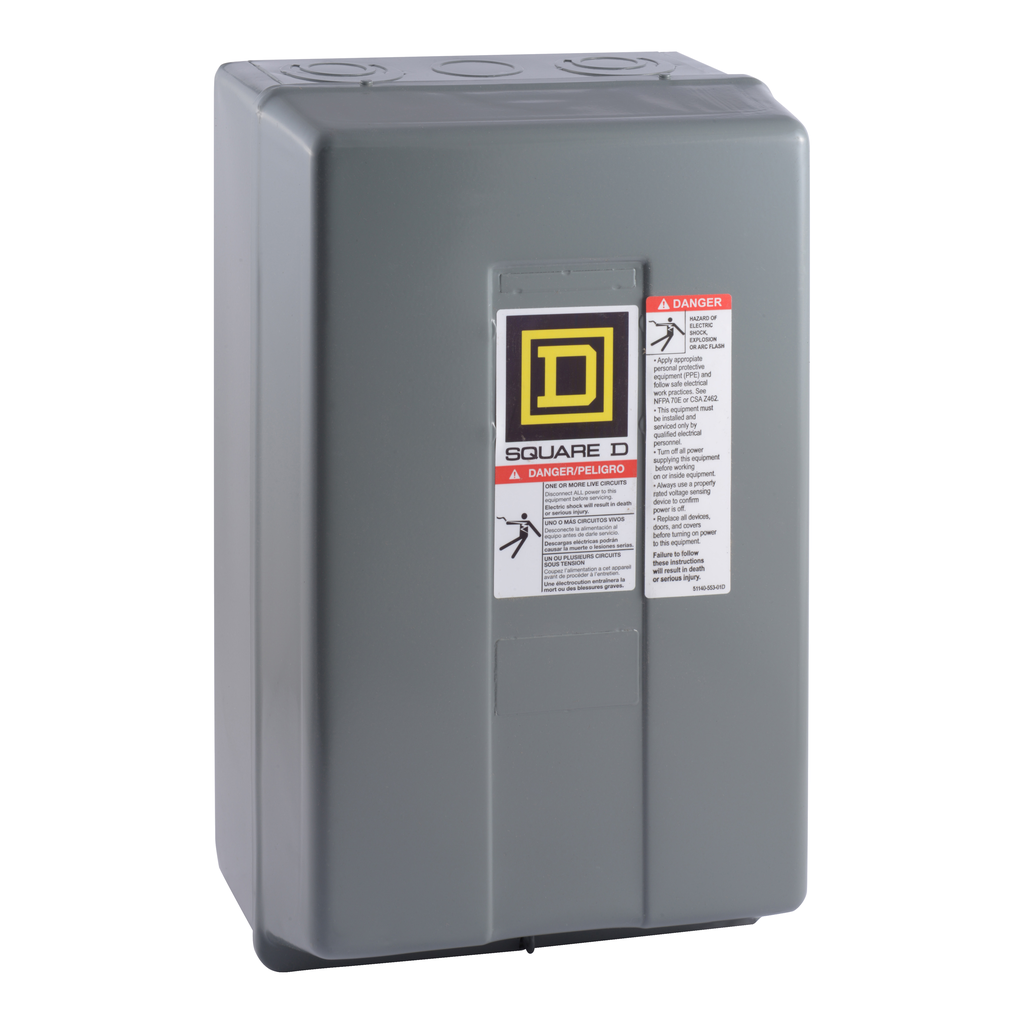

Contactor, Type L, multipole lighting, electrically held, 30A, 10 pole, 600V, 277VAC 60Hz coil, NEMA 1

Contactor, Type L, multipole lighting, electrically held, 30A, 10 pole, 600V, 277VAC 60Hz coil, NEMA 1

SKU: 14999812 Category: Starters & Contactors
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 10 pole device has 10 NO contacts. Supplied with a 277 VAC 60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
